SKU: ARA390288

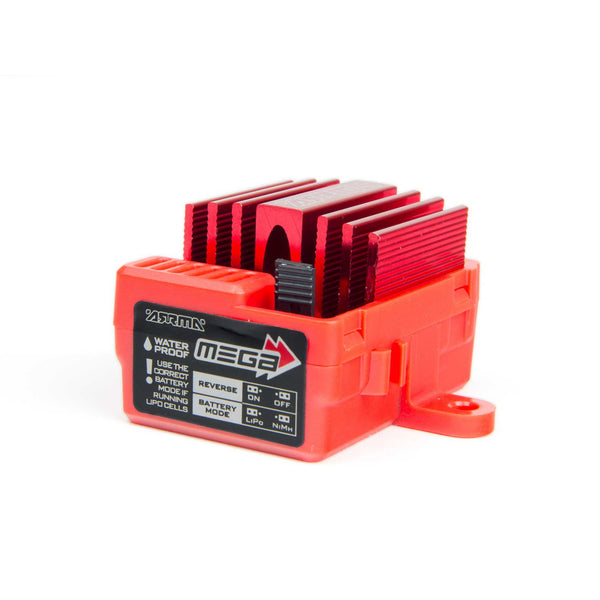

Arrma Mega Brushed 2S ESC

Name: Arrma Mega Brushed 2S ESC
Brand: Horizon Hobby
SKU: ARA390288
Price: 34.99 USD
Availability: InStock

$34.99

Free Shipping On Orders Over $199.99 (Some Restrictions Apply)

Secure Checkout

Questions? Call 815-798-7260

Or send us an Email.

Mon-Fri: 8am - 3pm
Sat: 9am - 2pm
Sun: Closed

Warranties

Our range of products come with warranties, ensuring your purchase is fully protected.

Free Shipping

Free Shipping On Orders Over $199.99. (Some Large Items Ship at $19.99 Flat Rate)

15-Day Guarantee

We want you to be
100% satisfied. If you are not happy, return it to us within 15 days.

USA Based

We are based out of the US and many of our products are made in the US.

Info

Info

OpenClose

This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.

Features

Fitted with reliable IC3 connector - Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions - Cool-looking integrated red anodized heatsink for increased heat dissipation - Durable motor and battery connection cables for safe and reliable power transfer - Waterproof power switch - Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit - Etched 'ARRMA' livery for cool looks and quality assurance

Battery usage	7.2v (6 Cell) NiMh Stick Pack, 8.4v (7 Cell) NiMh Stick Pack, 7.4V (2S) Lipo
Low Voltage Cut-Off (LVC)	3.2V per cell
Thermal Protection Temperature	95°C / 203°F
BEC Voltage	5V
BEC Current	2A
ESC Length	47mm / 1.85"
ESC Height	21mm / 0.83"
ESC Width	34mm / 1.34"
ESC Weight	70g / 2.47oz
Receiver Wire Length	160mm / 6.3"
Battery Wire Length	90mm / 3.54"
