Big, beautiful, and easy on any RC driver’s budget — that describes the 1/8 scale ARRMA INFRACTION 4X4 MEGA Street Bash Resto-Mod Truck to a tee. ARRMA engineering’s extreme durability lets you send it without giving crashes a second thought. Even inexperienced radio control hobbyists can escape into all-road action with street bash style! An attention-grabbing, multi-color trim scheme amplifies the retro appeal of the factory-finished body. Fully equipped and ready to run, the ARRMA INFRACTION 4X4 MEGA Street Bash Resto-Mod Truck includes a powerful brushed motor and rugged transmission that’s ready now for future brushless upgrades.

• Signature INFRACTION® Resto-Mod body, factory-finished in two stunning print scheme choices
• All-road dBoots® Katar vented tires on tough, gun-metal colored truck wheels, for balanced performance on all surfaces
• Powerful MEGA 9T brushed 570 motor
• Strong, 4S capable metal-geared diffs
• Signature ARRMA® modular design for easy maintenance

Product Details

In The Box

• (1) ARRMA® INFRACTION® 4X4 MEGA 1/8 Scale Street Bash Resto-Mod Truck RTR
• (1) ARRMA® MEGA Brushed Waterproof* ESC
• (1) ARRMA® 9T 570 Brushed Motor
• (1) Dynamite® 3300mAh 8.4V 7-cell NiMH Speedpack® 2 Hump Battery
• (1) ARRMA® ADC-N7 7-Cell NiMH Wall Charger
• (1) Spektrum™ 2.4GHz SLT3™ 3-Channel Transmitter
• (1) Spektrum™ SLR300 Receiver
• (1) Spektrum™ SPMS650 6kg Waterproof* Digital Servo
• (1) 1/8 INFRACTION 4WD MEGA Manual
• * For details on waterproof standards, please see product instruction manuals.

Needed to Complete

• (4) AA batteries for Transmitter

New Features

• Signature INFRACTION® Resto-Mod body, factory-finished in two stunning print scheme choices
• Body protecting roof skids and roll bars
• All-road dBoots® Katar vented tires on tough, gun-metal colored truck wheels, for balanced performance on all surfaces
• Front and rear sway bays for the ultimate all-road handling
• Large front foam bumper, integrated with the body for maximum protection
• Powerful MEGA 9T brushed 570 motor
• Large rear diffuser to reduce turbulence and drag
• Threaded oil-filled shocks with silicone O-rings for easy ride height adjustment
• Multi-adjustable body mounts

Proven 4x4 Platform Features

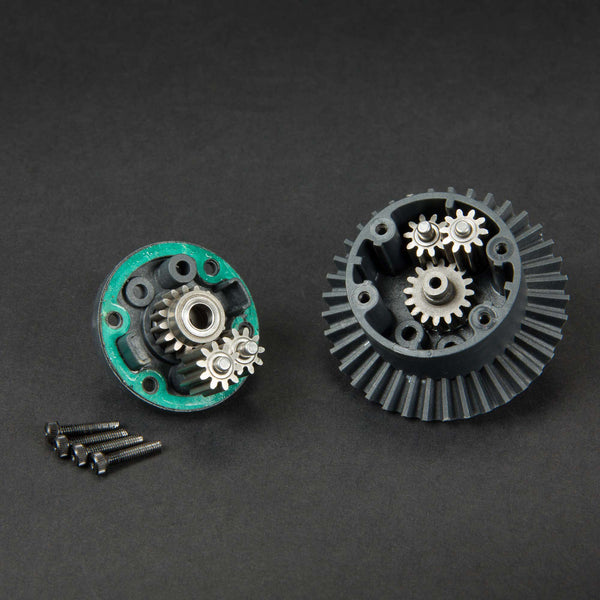

• Strong, 4S capable metal-geared diffs
• Brushless-ready transmission with 1.35 Mod input and main diff gears, and silicone O-rings
• Strong composite chassis with extended height dirt defenders
• Front and rear double wishbone suspension
• Steering system with stone clearance
• 30+ mph speed capability with optional pinion gear (not included)
• Signature ARRMA® modular design for easy maintenance
• Easy-access power module with dirt management
• Easy-access front and rear diff removal
• Easy access electronics module
• Rubber shielded bearings throughout
• Spektrum™ SLT3™ 2.4GHz 3-channel transmitter and SLR300 receiver with IC3® connectors (EC3™ compatible)
• Spektrum™ S650 Digital Steering Servo (6kg-cm / 84 oz-in @ 6V torque)
• ARRMA® MEGA Brushed ESC with IC3® connector (EC3™ compatible / 6-7 cell NiMH or 2S LiPo capable)
• Dynamite® 3300mAh 8.4V 7-cell Speedpack® 2 hump NiMH battery
• ADC-N7 7-cell NiMH wall charger
• 2-year limited warranty (see website support for details)

Overview

Big 1/8 scale bashing fits into any RC driver’s budget when the vehicle in question is the ARRMA INFRACTION 4X4 MEGA Street Bash Resto-Mod Truck. With this RC truck, even first-time radio control hobbyists can enjoy all-road action with street bash style. Send it with confidence over loose gravel, short grass, dirt courses, oval tracks, and many other on-road and light off-road surfaces. The strong composite chassis, oil-filled shocks, metal geared diffs and more combine to make this truck plenty rugged for high-speed bashing. Street-ready almost straight out of the box, the ARRMA INFRACTION 4X4 MEGA Street Bash Resto-Mod Truck turns up the heat with a sizzling, multi-color trim scheme factory-applied to the retro body. Roof skids and roll bars protect the finish as you bash and blast. Credit the ARRMA design team of RC enthusiasts for the ingenious, easy-access modular chassis that cuts maintenance and repair time to the bone. Fully equipped and ready to run, the truck comes with a powerful brushed motor capable of delivering 30+ mph speeds under optimum conditions (with an optional pinion gear available separately). The transmission is also ready when you are for a brushless upgrade. Using the included Spektrum radio, new drivers can set throttle limits at 50% or 75% until ready to use the full speed potential. The ARRMA INFRACTION 4X4 MEGA Street Bash Resto-Mod Truck comes complete with a 7-cell NiMH battery and wall charger. Just add four “AA” batteries and go in style!

Video Overview

Support Video Playlist

STRONG COMPOSITE CHASSIS

Features that contribute to the 4X4 MEGA platform's unstoppable performance include a strong composite chassis; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh and rubber-shielded bearings throughout. Extended height dirt defenders limit the amount of dirt and debris that can get into the chassis tub. A large front foam bumper integrates with body for maximum protection.

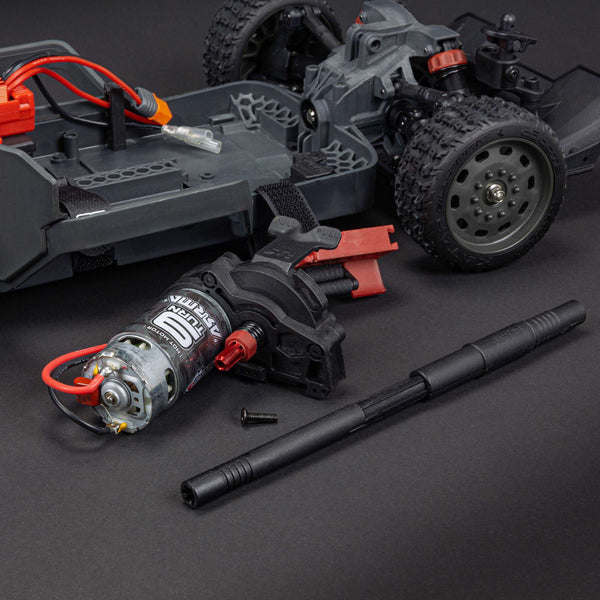

SIGNATURE EASY-ACCESS MODULAR DESIGN

The INFRACTION® 4X4 Mega Street Bash Resto-Mod Truck RTR incorporates the signature ARRMA® easy-access modular design. Separate, easily removable chassis modules for the power system, electronics, and differential components make routine maintenance fast and simple.

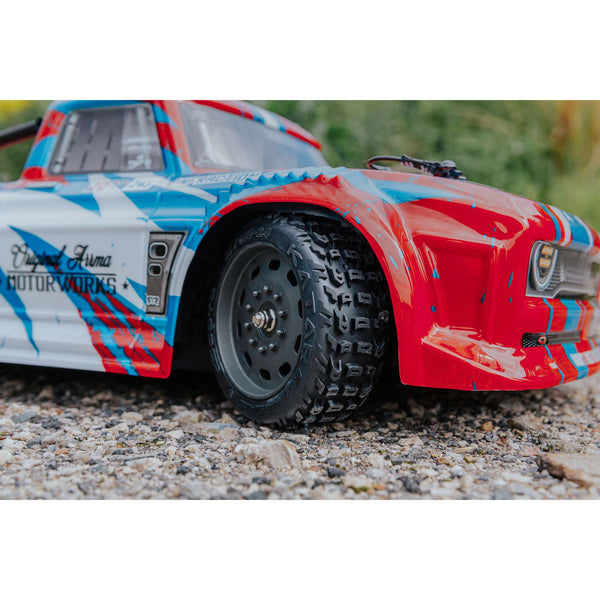

WHEELS & TIRES

The dBoots® Katar vented all-road tires are made of high-quality rubber for long-lasting durability and provide incredible traction in all surface conditions. The tires are glued to tough, gun-metal colored nylon wheels and include high-quality inserts for excellent tread support.

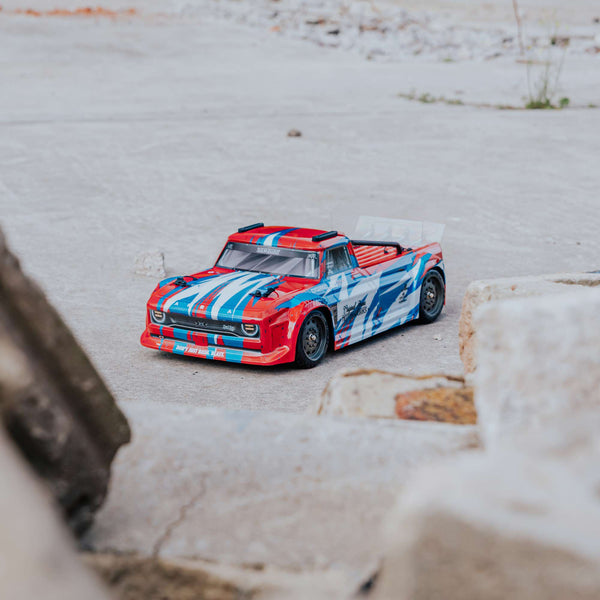

CLASSIC TRUCK BODY

The signature INFRACTION® Resto-Mod body offers classic truck looks for all-road bashing. It's available factory-finished in your choice of stunning red/blue or teal/bronze print schemes and includes protective roof skids and roll bars.

SPEKTRUM™ SLT3™ RADIO

The INFRACTION® 4X4 Mega Street Bash Resto-Mod Truck RTR includes the Spektrum™ SLT3™ transmitter and SLR300 receiver. The transmitter is ergonomically designed for long periods of fatigue-free bashing and has a foam wheel for precise fingertip control plus an improved hand grip and trigger feel. New bashers will be able to set throttle limits at 50% or 75% until they are ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own and includes a third channel to control optional features such as lights and winches on models that have them.

OIL-FILLED SHOCKS

The oil-filled shocks include silicone O-rings and are threaded to allow for easy ride height adjustments. Combined with the front and rear double wishbone suspension, front and rear sway bars, and large rear diffuser, they give the INFRACTION® 4X4 Mega Street Bash Resto-Mod Truck RTR the ultimate all-road handling.

Product Specifications

Receiver: Included

Shock Type: Oil-Filled, Coil-Over Springs

Spur Gear: 55T

Suspension: Independent

Wheel Width: 1.38 in (35mm)

Gear Pitch: 0.8m

Approximate Assembly Time: No assembly required

Servos: Included

Body: Painted, decaled and trimmed

Pinion: 15T

Scale: 1/8

Power Type: Electric

Battery: Included

Charger: Included

Internal Gear Ratio: 2.85

Differential: 2 Gear Diffs

Motor Size: 9T 570

Product Length: 22.13" (562 mm)

Max Battery Dimensions: 165 x 51 x 48mm (6.5 x 2.01 x 1.89 in)

Ball Bearings: Rubber shielded bearings throughout

Chassis: Molded Composite

Completion Level: Ready-To-Run

Drivetrain: 4WD

Drive Type: Forward/Brake/Reverse

Product Height: 6.34" (161 mm)

Top Speed: 30+

Wheel Hex Size: 14mm

Product Weight: 6.6 lb (3kg)

Tire Tread: dBoots® Katar All-Road

Water-Resistant: Yes

Vehicle Type: On-Road

Front Track: 10.00 in (254mm)

Inner Tire / Outer Wheel Diameter: 2.6 in

Power System: MEGA

Product Width: 10.12" (257 mm)

Radio: Included

Technology: SLT Protocol

Final Drive Ratio: 10.45

Motor Type: Brushed

Rear Track: 10.08 in (256mm)

Speed Control: Included

Wheelbase: 13.19" (335 mm)
