MORE POWER - COOLER TEMPS - LONGER RUNS

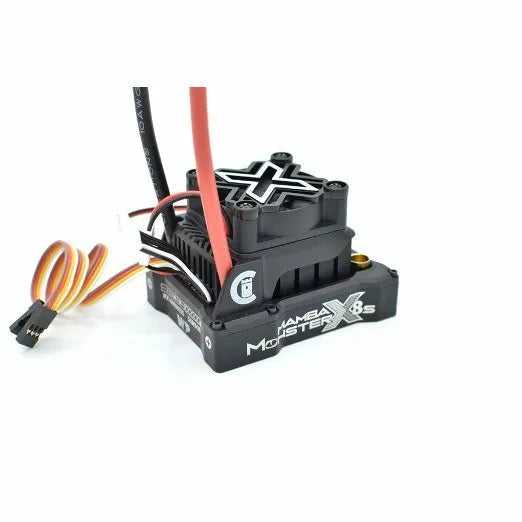

Take your 1:6th scale build or upgrade to the next level with Castle’s legendary brushless power. With the introduction of the MAMBA MONSTER X 8S any R/C vehicle weighing up to 25lbs, and running up to 8S LiPo, is fair game.

Note: This is not a direct replacement to the Mamba XLX2. The XLX2 still handles rawer full throttle power in the most extreme setups.
RACER TESTED - BASHER APPROVED

Drive fearlessly and punch that throttle! The MAMBA MONSTER X 8S utilizes Castle’s breakthrough technology CRYO-DRIVE™. By reducing the rate at which the ESC heats up and removing heat more efficiently, your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm cooling fan and a forged elliptical fin heatsink, the design maximizes airflow throughout the system, taking thermal performance to a whole new level.

High-performance demands high quality and this ESC was designed with durability in mind. Constructed around a robust aluminum casing, the epoxy potting guarantees protection around the circuitry and ensures all-weather use. Mamba Monster X 8S is a workhorse, it will dominate in the harshest of environments.

You can easily optimize the ESC for any driving condition, from rugged terrain to smooth pavement to the perils of rock and gravel. Create, save and download setup profiles through the Castle Link Programming Suite on your Windows™ PC, or wirelessly with the convenience of the new B-Link™ Bluetooth™ Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly adjustments from your transmitter via the Auxiliary wire. Simply connect the white signal wire to an open radio channel, and enable the feature in Castle Link by selecting what Auxiliary function you would like to use. Access programming parameters such as Torque Control, Max Brake or Rock Race Mode. Optimize your vehicle for any racing or bashing application you can imagine!

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR such as the 2028-800KV or 1515-2200KV, users with heavy, high speed rigs will experience controllable low-end ranges without sacrificing power, punch or speed. SmartSense™ mode uses the motor’s sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is spinning, it seamlessly transitions to Castle’s ultra-efficient sensorless mode. You’ll put more power to the ground, where it should be, instead of wasting it through raw heat and RPMs.

Whether you are burning out, dropping the hammer, trigger happy, powering out, on-the rocks, off-the-rocks, wheeling or mud bogging - MAMBA MONSTER X 8S is ready to test the limits of your R/C car or truck.

Input Voltage Range 2S-8S LiPo
Sensorless, Sensored and SmartSense™ Running Modes
Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 40MM cooling fan
Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
Waterproof design for all weather conditions
Data logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Easily tune and update ESC with USB and Bluetooth™ programming options
Castle Link USB programming kit (coupon included with purchase)
Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately and Castle Link all available on Google Play or Apple App Store
Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

MAMBA MONSTER X 8S ESC COMES WITH:
Mamba Monster X 8S ESC
Castle Sensor Harness Adapter
Mamba Decals
Coupon for free Castle Link USB
Motor connection wire, bullets and shrink
ESC Quick Start Guide
Motor Quick Start Guide

Specifications:
Waterproof: Yes
Telemetry Capable: Yes
Data Logging: Yes
Auxiliary Wire: Yes
Minimum Input Voltage: 2S
Maximum Input Voltage: 8S
Sensored Capable: Yes
Recon G6 Certified ESC: No
ROAR Certified ESC: No

	Features For 1/8 scale buggies, truggies and on-road vehicles, and 1/10 scale monster trucks weighing up to 15lbs (6.8kg) 2S-6S LiPo compatible Adjustable BEC (battery eliminator circuit) 5.5V, 6.0V, 7.5V, or 8.0V 8A Peak), default 5.5V Castle Link Adjustable settings include; Brake/Reverse Type LiPo Cutoff Voltage Brake Amount Drag Brake Motor Type Programmable Auxiliary Wire (AUX) allows adjustments to several settings such as torque control and max throttle from a compatible transmitter Sensored motor capable with purchase of optional (not included) Sensor harness from Castle Creations Telemetry ready with purchase of Castle Creations S.BUS Telemetry Link One year limited warranty through Castle Creations beginning at date of purchase
