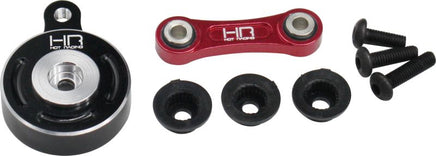

HRAATF48SH02 Fixed Link Steering Servo Saver, for Arrma 1/10 4x4

Hot Racing aluminum servo saver with Fix Link steering for Arrma 1/10 Steering

- CNC 6061-T6 aluminum construction
- Black anodized
- Multiple inserts to accommodate many different servo splines

- One (1) Aluminum Fix steering link.
- One (1) servo saver
- One (1) spline adapters for 23 tooth (KO, Sanwa, JR)
- One (1) spline adapters for 24 tooth (Hitec)
- One (1) spline adapters for 25 tooth (Futaba)

- Installing on servo

- Servo saver
- length: 34mm
- diameter: 23mm
- 23 tooth (KO, Sanwa, JR, Airtronics, Spektrum)
- 24 tooth (Hitec)
- 25 tooth (Futaba, Traxxas, SAVOX, Tactic, some of the new Hitec)

- Replaces Arrma AR340151 (ARAC8883) and AR34132 Servo Saver and Link
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Big Rock 4X4 3S BLX: AR102711
- Granite 4X4 3S BLX: AR102666
- Granite 4X4: AR102665 (green), AR102676 (red)
- Senton 4X4: AR102667 (red), AR102678 (blue)
- Senton 4X4 3S BLX: AR102668
- Typhon 4X4 3S BLX: AR102696
- Typhon 4x4 550 AR102694
- Outcast 4X4 4S BLX ARA102692
- Kraton 4X4 4S BLX ARA102690
