Blast through even brutal terrain with the full-time 4WD traction and power of the 1/10 scale ARRMA GRANITE 4X4 MEGA 550 Brushed RTR. The muscular design of this RC monster truck 4x4 amplifies your driving thrills as only ARRMA can. Unleash astonishing speed capabilities of 30 mph or more with the included NiMH battery and optional gearing. Upgrade to 2S LiPo power and take the speed, run time, and monster truck remote control madness to a whole new level. This ARRMA RC truck arrives fully assembled and ready-to-run. Just add AA transmitter batteries and send it!
- MEGA 12T brushed 550 motor
- MEGA waterproof ESC
- IC3™ connectors (EC3™) compatible
- 30MPH (48km/h) speed achievable in optimum driving conditions with optional gearing
- Ready to Run (RTR) comes fully assembled with everything needed besides AA batteries!
Product Details
In The Box
- (1) ARRMA® GRANITE™ 4X4 MEGA 550 1/10 Scale 4WD Electric Monster Truck RTR
- (1) MEGA Waterproof* ESC
- (1) MEGA 12T Brushed 550 Motor
- (1) Spektrum™ Waterproof* SPMS650 Digital Servo
- (1) Spektrum™ SLR300 Receiver
- (1) Spektrum™ 2.4GHz SLT3™ 3-Channel Transmitter
- (1) Dynamite® 3300mAh 8.4V 7-Cell Speedpack® 2 Hump NiMH Battery
- (1) ADC-N7 7-Cell NiMH Wall Charger
- (1) 1/10 GRANITE 4WD V3 MEGA Manual
Needed to Complete
- (4) AA batteries for Transmitter
Features
- Stronger chassis and retained hinge pin plates
- Steering with more clearance for stones
- Castellated slipper pad and sliding gear mesh
- 23T Spline servo saver
- Brushless-ready 37T 1.35Mod diffs with silicone O-rings
- Power Module with sliding gear mesh and improved dirt management
- Rubber shielded bearings throughout
- Oil-filled shocks with silicone O-rings
- New body design, front and rear bumpers, paint and decals
- New vented tires
- MEGA 12T brushed 550 motor
- MEGA waterproof* ESC* Note: For details on waterproof standards, refer to the instruction manual
- IC3™ connectors (EC3™) compatible
- Signature easy-access modular design
- Easy-access power module
- Easy-access electronics module
- Easy-access diff module removal front and rear
- Double wishbone suspension front and rear
- Metal-geared differentials
- Adjustable ride height
- Adjustable body mounts
- Extended height dirt defenders
- Multi-terrain dBoots® Fortress™ MT tires
- Tough multi-spoke black MT wheels
- ADC-N7 7-cell NiMH wall charger
- 2-year limited warranty (see website for details)
- 30MPH (48km/h) speed achievable in optimum driving conditions with optional gearing
Overview
Built for extreme all-terrain action, the 1/10 scale ARRMA GRANITE 4X4 MEGA 550 Brushed RTR amplifies the excitement of your monster truck RC bashing as only an ARRMA RC truck can. This RC monster truck 4x4 rides tall on massive, high-traction, multi-terrain tires. They turn the rugged powertrain’s 30+ mph speed potential into turf-pounding, fast RC truck fun almost anywhere you please. Go ahead and send it. From the full-time 4WD transmission to the large diff gears, every part of this big RC truck is built to survive brutal blasting. ARRMA also gives fast, easy maintenance a whole new meaning with the ingenious modular chassis design. You can reach almost any component by removing just a few screws. With the included Spektrum 3-channel radio, monster truck remote control is easy for anyone. New drivers can set the throttle limits at 50% or 75% until ready to use the full speed potential. The included, high capacity NiMH battery delivers enough performance and run time to make this the one of the best RC monster trucks for any skill level. You can also upgrade to 2S LiPo power and take your RC 4x4 off-road fun to the next level. Fully assembled and ready-to-run, the ARRMA GRANITE 4X4 MEGA 550 Brushed RTR needs nothing more than four AA batteries before it’s GO time!
Video Overview
Support Video Playlist

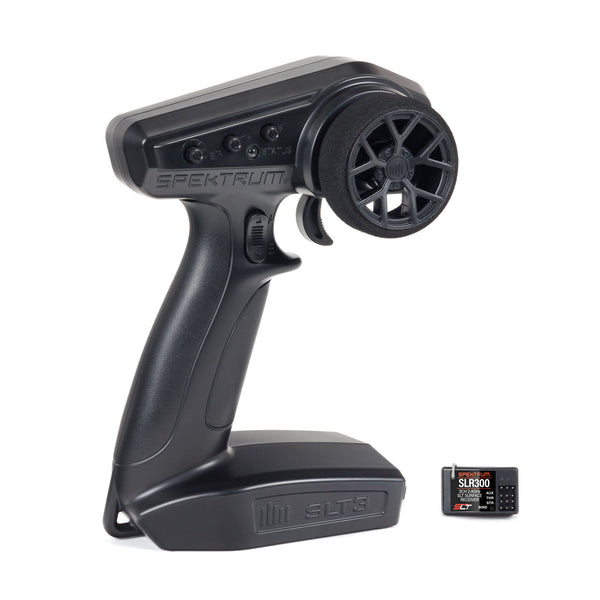

Spektrum™ 3-Channel SLT3™ 2.4GHz radio and SLR300 Waterproof* Receiver
- Fast response SLT™ protocol
- Foam wheel
- Improved grip and trigger feel
- Improved wheel and trigger force
- 2-way thumb switch third channel
- 50% and 75% Throttle mode (for beginners)
- Tactic® SLT™ receiver compatible
Dynamite® 3300mAh 8.4V 7-Cell Speedpack® 2 Hump NiMH Battery
- 35% more run time over the 2400mAh pack in the previous version
- 7 cell NiMH Hump Pack
- 3300mAh capacity
- 8.4 Volts
- Factory-fitted IC3® Connector (EC3 Compatible)
Spektrum™ SPMS650 digital servo
- 84 oz-in (6 kg-cm) @ 6V
- 20% more torque than the previous ADS-5 servo for improved steering feel
- Waterproof*
* Note: For details on waterproof standards, refer to the instruction manual
Strengthened Chassis
Stronger chassis and retained hinge pin plates
Larger pull tab on power module
Castellated slipper pad and sliding gear mesh
Rubber shielded bearings
Redesigned Steering
Steering with more clearance for stones.
Tougher brushless ready transmission
Metal input spline moulded into composite gear. Same gears as the ARRMA 4S.
Sealed Wheels & Vented Tires
Stops dirt getting in and allows water to escape.
Multi-terrain dBoots® Fortress™ MT tires
Tough, multi-spoke black MT wheels with dBoots® Fortress™ MT tires give the GRANITE™ 4X4 MEGA RTR effective traction for bashing on almost any terrain.
Silicone O-rings
Oil-filled shocks with silicone O-rings
Heavy-Duty Bumpers
Impact absorbing.
Proven Power Package
- MEGA 12T brushed 550 motor
- MEGA waterproof* ESC* Note: For details on waterproof standards, refer to the instruction manual
- IC3™ connectors (EC3™) compatible
Easy-access power module
- Detaches from chassis as a complete unit by removing one screw.
- Contains motor, motor plate, slipper clutch assembly and gear cover.
Easy-access electronics module
- Two-piece molding screwed to the chassis contains a waterproof receiver box, servo mount, and ESC tray.
- Receiver mounts inside sealed module for protection from dirt and moisture.
- ESC screws to the top for easy maintenance and switch access.
- Servo mounts on the side for quick servicing.
Metal-geared differentials
- Large gears can withstand huge torque, and internal metal gears have been chosen for reliability during extreme bashing.
- Easy-access front and rear diff module removal.
Proven tough composite shock towers
Product Specifications
Receiver: Included
Shock Type: Oil-Filled, Coil-Over Springs
Product Weight: 6.69
Bushing Material: Metal
Charger: Included
Differential: 2 Gear Diffs
Pinion: 14T
Scale: 1/10
Body: Painted, decalled and trimmed
Wheelbase: 11.3 in (287mm)
Battery: Included
Connector Type: IC3, EC3
Ground Clearance: 1.85 in (47mm)
Internal Gear Ratio: 2.85
Product Length: 17.76" (451 mm)
Spur Gear: 91T
Final Drive Ratio: 18.5
Steering Type: 2WS
Motor Type: Brushed
Suspension: Independent
Rear Track: 13.46 in (342mm)
Power System: MEGA
Product Width: 13.46" (342 mm)
Power Type: Electric
Gear Pitch: 48-pitch
Servos: Included
Front Track: 13.46 in (342mm)
Radio: Included
Technology: SLT Protocol
Ball Bearings: Transmission
Chassis: Molded Composite
Product Height: 8.11" (206 mm)
Top Speed: 30+
Wheel Hex Size: 14mm
Completion Level: Ready-To-Run
Drivetrain: 4WD
Tire TreaddBoots Fortress MT
Vehicle Type: Monster Truck
Water-Resistant: Yes
