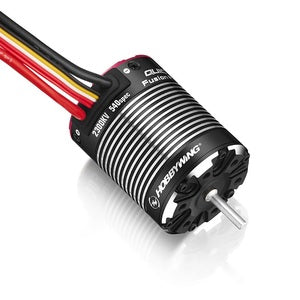

Ultra-Compact Fusion Pro
At just 48.5mm, the 2-in-1 System is 9.5mm shorter than the Pro Standard and 1.3mm shorter than the AXE 540. Designed for a clean, easy fit in nearly all 1/10th scale vehicles.
Includes:
- 1x FOC motor w/ built-in ESC
- Factory-installed XT60 plug
- 1x Decal and Manual
- 1x Heatshrink kit, double-sided tape, and zip ties.
Features:
- Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts.
- FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel.
- The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly.
- The entire system has an IP67 protection grade, enabling operation in all conditions.
- Intelligent torque output and speed closed-loop control ensure precise handling.
- Active drag brake force adjustment provides superior holding power on inclines.
- The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos.
- Real-time parameter adjustments are possible using the transmitter's AUX channel.
- Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection.
- The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings.
Specifications:
- Continuous/Peak Current: 50A/150A
- Main Applications: 1/10 Crawler
- LiPo/NiMH Cells: 2-4S LiPo, 6-12 Cells NiMH
- BEC output: 6V/7.4V/8.4V adjustable, continuous current 5A (Switch mode)
- Size/Weight: 37mm (diameter) x 48.5mm (length)/178.5g (including wires & connectors)
- Programming port: Independent programming port (switch position)
- Motor KV: 2300KV
- Diameter/Length of motor: 37mm/48.5mm
- Shaft diameter/exposed shaft length: 3.175mm/16mm
- Motor Poles: 4
