Features

• Laser-etched aluminum anodized chassis plate
• Strong composite chassis side pods
• Triangular structured center brace system for maximum durability
• Oil-filled adjustable shocks with massive 20mm bore
• Ultra-thick composite front and rear shock towers
• Easy-access 3-bolt sliding motor mount for quick motor removal
• Aluminum motor mount and hubs
• Heavy-duty drivetrain
• Durable steel driveshafts throughout
• Easy-access front and rear diff module design
• All-metal diff outdrives and gearbox internals
• Easy-access waterproof electronics module
• Heavy-duty dual spring servo saver
• Multi-split spoke wheels
• Durable wheel hubs for increased strength
• Multi-terrain dBoots® COPPERHEAD™ 2 SB tires
• Ultra-tough truck body and decals
• High downforce wing
• Integrated internal body protection tower
• Spektrum™ DX3 3-channel 2.4GHz Radio with SR6100AT AVC® Receiver
• Spektrum™ Firma™ 160A Smart ESC
• Spektrum™ Firma™ 1250Kv Brushless Motor
• Spektrum™ S905 Metal-Geared Digital Servo
• 2-year limited warranty

Overview

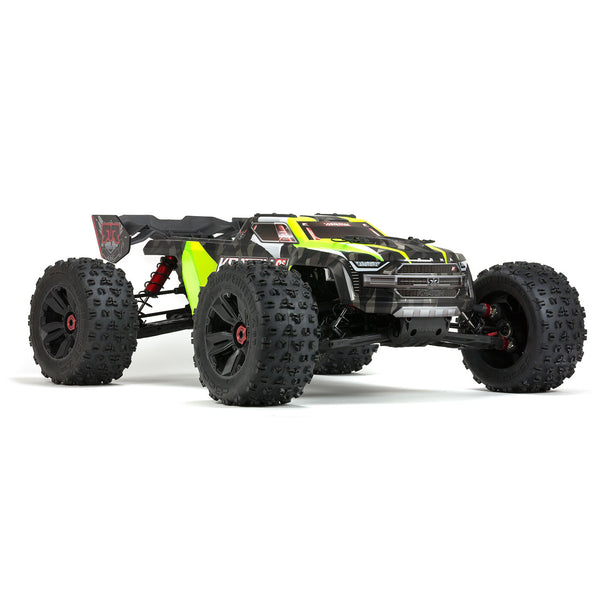

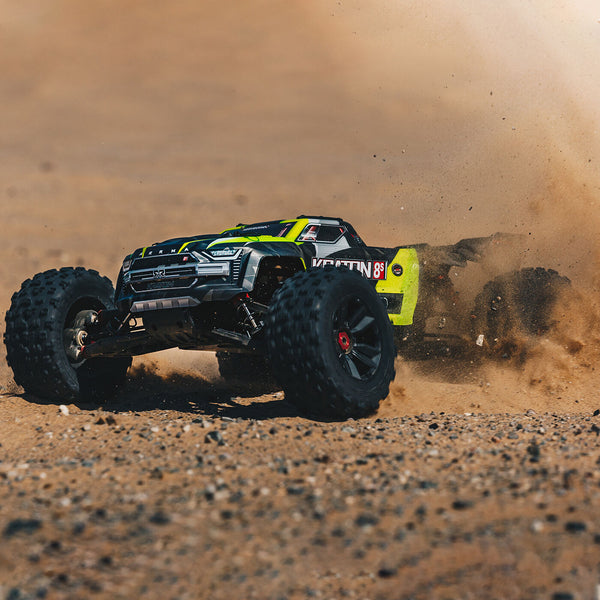

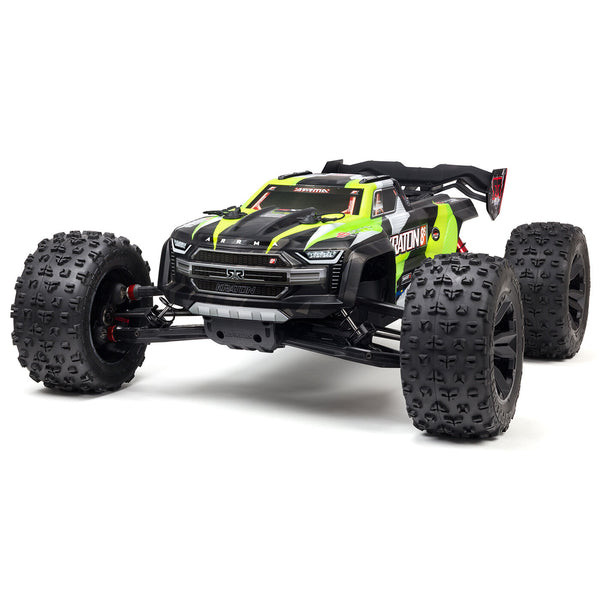

Bigger than big and engineered for brute power and toughness, the ARRMA® 1/5 scale KRATON™ 8S BLX 4WD Speed Monster Truck takes your bashing ability to the next level. Its metal-reinforced design lets you blast up, over, and through bruising obstacles without worry. Metal shafts, turnbuckles and outdrives, plus all-metal internal gears, give the drivetrain and suspension system unstoppable strength. The anodized aluminum chassis plate features composite side pods and a triangular center brace for maximum durability. Ultra-thick composite front and rear shock towers hold massive 20mm bore, oil-filled adjustable shocks that soak-up bumps and jolts.The power that sends the KRATON™ 8S BLX 4WD Speed Monster Truck charging easily over challenging terrain comes from its 1250Kv Spektrum™ Firma™ brushless motor. The torque and acceleration is incredible. For quick access, the motor is mounted with three bolts onto a sliding aluminum mount.The waterproof electronics module — also designed for easy access — houses and protects more innovative Spektrum™ equipment. ARRMA® has equipped the KRATON™ 8S BLX 4WD Speed Monster Truck with a state-of-the-art Firma™ Smart 160A ESC and SR6100AT AVC® (Active Vehicle Control®) receiver. Innovative connectivity enables all the Smart electronics to send valuable telemetry data to the included Spektrum™DX3 3-channel transmitter without requiring multiple wires, sensors, modules and links. Just download the free Spektrum™ Dashboard App to your mobile device, which connects wirelessly via Bluetooth to the DX3 transmitter. Then you can view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time.The ultra-tough KRATON™ truck body with high-downforce wing is available factory trimmed, painted and decaled in two striking color schemes. A center protection tower on the chassis interfaces with the roll cage for increased body durability. It all rides on multi-split spoke wheels with strong, durable aluminum wheel hubs, and multi-terrain dBoots® COPPERHEAD™ 2 SB tires with a tread pattern designed for extreme, all-terrain action.

Video Overview

ALL-METAL DRIVETRAIN

ARRMA tough gears, diffs, outdrives and driveshafts.

FULL METAL STRONG

Suspension arm end caps, pivot balls, steering plates.

SLIDING MOTOR MOUNT

For easy meshing and quick removal.

MASSIVE ALLOY SHOCKS

24mm diameter bodies.

BODY PROTECTION TOWER

Interfaces with roll cage for enhanced body durability.

TRIPLE CENTER BRACE SYSTEM

For maximum chassis durability.

BEAUTIFULLY LASER ETCHED CHASSIS PLATE

SPLIT-SPOKE WHEELS & MULTI-TERRAIN DBOOTS® COPPERHEAD 2 SB TIRES

STAND OUT FROM THE REST

Punchy from a distance, tonal detailing close-up.

INTEGRATED ELECTRONICS MODULE

Combined ESC, servo and receiver module.

SPEKTRUM™ SMART TECHNOLOGY INCLUDED

8S POWER MODULE

AVC® INCLUDED SPEKTRUM™ ACTIVE VEHICLE CONTROL™ SYSTEM

For some help when things get loose.

OVERSIZED BATTERY TRAYS

Accommodate a wide range of battery sizes.

SPEKTRUM 2.4GHz DX3 3-CHANNEL RADIO & SR6100AT RECEIVER

• DSMR® Technology for superior range, response and interference resistance
• 3-Channel operation (Steering, Throttle, AUX1)
• Smart Technology ready with the included SR6100AT Receiver
• New styling focused on ergonomics
• Foam covered steering wheel for better control
• Convenient voltage level indicator for Smart batteries
• Supports the on-demand traction control of AVC® technology
• Servo reversing and trim dial
• 3-position throttle limiter

SERVO

• Full-size 1/5th scale servo
• Strong, metal gears used throughout
• Waterproof and dustproof case
• 15 tooth output spline
• Torque: 38kg-cm @6V
• Speed: 0.20sec/60degree @6V
• Dimensions: 2.36 x 1.14 x 2.17" (60 x 55 x 29mm)

SPEKTRUM™ FIRMA™ 160 AMP BRUSHLESS SMART ESC

• Waterproof and dustproof design
• 160A, 8S LiPo ready (3S*, 4S*, 6S* and 8S LiPo compatible)
• Spektrum® Smart Technology
• Fitted with reliable IC5™ connectors (EC5™ compatible)
• Integrated fan for reduced heat during extreme running
• High quality 10awg wires
• Low voltage cut off and thermal overload protection
• User programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings

*3S, 4S and 6S are not recommended for the KRATON 8S BLX model

SPEKTRUM™ FIRMA™ 4685 1250Kv BRUSHLESS MOTOR

• Beautifully etched aluminum can
• 4-pole construction for smooth and consistent power
• 6.5mm gold bullet connectors for reliable and efficient connection
• Black anodized aluminum motor can for increased heat dissipation
• Super strong 8mm shaft
• Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
