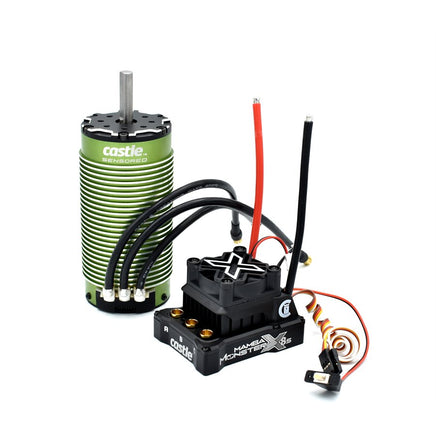

Pairing the sensor ready MAMBA MONSTER X 8S with the Castle 2028-800KV sensored motor enables users with heavy, high speed rigs to experience controllable low-end ranges, without sacrificing power, punch, or speed. SmartSense mode uses the motors sensors to start the motor to provide smooth cog free starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ultra-efficient sensorless mode. Electronic timing in SmartSense will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled hybrid between smooth sensored startups and highefficiencysensorless drive.

Application: Mamba Monster X 8S and 2028-800Kv motor is intended for use in 1:6 scale vehicles weighing up to 25 lbs. and up to 8S LiPo. Vehicle Examples: Traxxas X-Maxx & Unlimited Desert Racer; Arrma Kraton 8s & Limitless; Losi Super Rock Rey & Audi R8; Redcat Shredder (optional motor mount and modifications may be necessary to install motor).

Features:

New 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat

Proprietary stator winding enables low internal resistance for a cooler running motor

Dual sensor ports to ensure optimal installation in your large-scale vehicle

Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible

High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs

Specifications:

Input Voltage Range: 3S-12S LiPo (8S MAX with this ESC/Motor Combo)

Max RPM: 45,000

Size: Length: 4.4" (112.7mm) Diameter: 2.2" (56.3mm)

Weight (w/wires): 44 oz. / 1.25kg

Shaft Size: Length: 30mm Diameter: 8mm

Mounting Hole Specifications: 4mm @ 30mm
