SKU: SRTW35

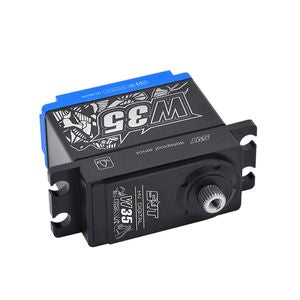

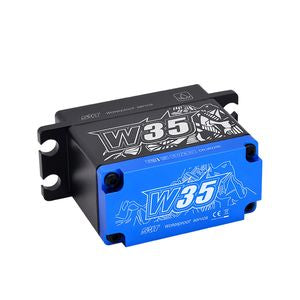

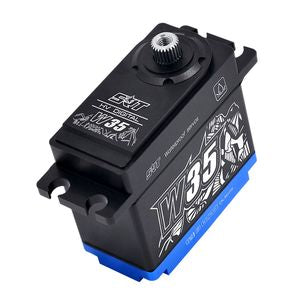

SRT RC Standard HV Coreless Waterproof Servo, .10sec / 486.1oz @ 8.4V

$67.99

Free Shipping On Orders Over $199.99 (Some Restrictions Apply)

Secure Checkout

Questions? Call 815-798-7260

Or send us an Email.

Mon-Fri: 8am - 3pm
Sat: 9am - 2pm
Sun: Closed

Info

Info

OpenClose

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Features:

Standard dimension make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
NMB dual main bearings
25T output shaft
HD 4096 Resolution
2 usec Dead Band
1-Year Limited Warrant

Specifications:

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
Control System: Pulse Width Control
working frequence: 1520Is / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.15 sec/60 degrees at no load
Operating Speed (7.4v): 0.12 sec/60 degrees at no load
Operating Speed (8.4v): 0.10 sec/60 degrees at no load
Stall Torque (6.0v): 25.0kg.cm (347.2 oz/in)
Stall Torque (7.4v): 30.0kg.cm (416.6 oz/in)
Stall Torque (8.4v): 35.0kg.cm (486.1 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
Weight: 82.5g (2.91 oz)
Connector Wire Length: jr 360 mm
