MODEL SPECS

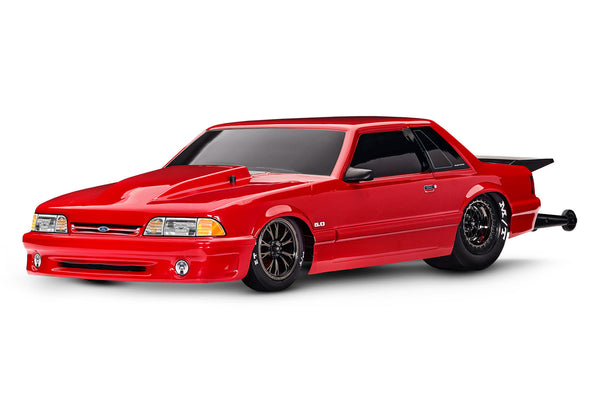

| Model Name: | Drag Slash Mustang HD |
|---|---|
| Model Type: | On-Road Cars |
| Model Skill Level: | 4 |
| Scale: | 1/10 |
| Weight: | 5.05 lb (2.29 kg) |
| Length: | 23.9 inches (608 mm) |
| Width: | 11 inches (279 mm) |
| Front Track: | 9.3 inches (236 mm) |
| Rear Track: | 8 inches (205 mm) |
| Height: | 6.7 inches (170 mm) |
MOTOR SPECS
| Motor Name: | Velineon® 3500 |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 9.24 ounces (262 g) |
| Motor Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | 3.5 mm bullet |
ESC SPECS
| ESC Name: | VXL-3s™ electronic speed control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| ESC Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 12 gauge Maxx® Cable |
