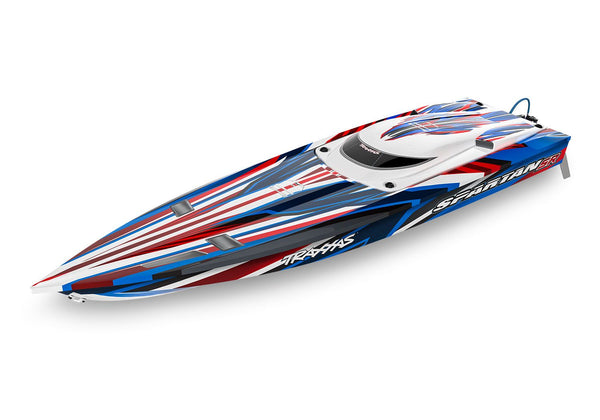

Spartan® SR is built for speed and performance. Pull the trigger and Spartan SR immediately jumps on plane and rips across the water to its heart-pounding 50+mph top speed! There’s nothing else like it and nothing holding you back. If a wave pitches the wrong direction, self righting is on board and within seconds, Spartan SR is back to extreme, full-throttle fun.
-
36″ Reinforced Deep-V Hull
- Made from lightweight vacuum-formed ABS
- Self-righting flood chamber
- Pre-applied graphics
- Quick-release electronics tray
-
Rigid Injection-Molded Clipless Hatch
- Four quick-release hatch nuts with tool
- Foam seal keeps water out
- Includes optional tool-free wingnuts
- Up to 50 MPH with Dual 3s LiPo Batteries
-
VXL-6s™ Marine Electronic Speed Control
- Water-cooled case
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 14 cells (16.8 volts)
- LiPo battery packs: 4-6 cells (14.8 to 22.2 volts)
-
Velineon® 540XL Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Efficient, high-speed ball bearings
- 1800 kV
- 5 mm output shaft
- Water-cooled jacket
-
Traxxas Stability Management® (TSM)
- Improves straight line acceleration
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter
-
TQi™ 2.4 GHz Radio System
- 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Programmable multi-function knob
- Patented waterproof receiver box
-
Extra-Long 218 mm Battery Tray
- Centralizes battery weight
- Allows fore and aft battery positioning
- Accommodates multiple battery configurations
- Secure hook and loop straps
-
Driveline
- Heavy duty 4.7 mm diameter flex shaft
- Quick-release motor collet
- Blue-anodized aluminum drive strut
- Low-maintenance bushings
- High performance prop
-
Steering
- Waterproof digital 2056 servo
- Blue-anodized aluminum rudder with water pickup
- Precision-Cut Stainless Steel Trim Tabs and Turn Fins
- Stainless Steel Hex Hardware Used Throughout
Extreme Full-Throttle Fun with Self-Righting Security
Spartan SR is built for speed and performance. Pull the trigger and Spartan SR immediately jumps on plane and rips across the water to its heart-pounding 50+ mph top speed! There’s nothing else like it and nothing holding you back. If a wave pitches the wrong direction, self righting is on board and within seconds, Spartan SR is back to extreme, full-throttle fun.
MODEL SPECS
| Name: | Spartan SR Race Boat |
|---|---|
| Type: | Boat |
| Speed: | 50+ mph with two 3-cell LiPo batteries |
| Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 5.29 pounds (2.39 kg) |
| Length: | 40.8 inches (1037 mm) |
| Width: | 9.5 inches (243 mm) |
| Height: | 7.2 inches (183 mm) |
| Drive System: | Direct drive, 4.7 mm flex cable |
MOTOR SPECS
| Name: | Velineon® 540XL Marine | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor Type: | Sensorless brushless | ||||||||||||
| Weight: | 13.62 ounces (386 g) | ||||||||||||
| Length: | 4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length | ||||||||||||
| Diameter: | 1.42 inches (36 mm) | ||||||||||||
| Shaft Size: | 5 mm | ||||||||||||
| Connector Type: |
Traxxas 5.5 mm bullet connectors
ESC SPECS
|
- Traxxas 103076-4-RED - Spartan 36in Self Righting Brushless Boat RTR, Red
- Features: Self-righting hull for instant recovery Stainless steel turn fins for sharp cornering Deep-V hull for superior stability Equipped with the VXL-6s Marine Brushless ESC Waterproof electronics for durability and longevity High-performance propeller for quick acceleration Centrally positioned battery tray for improved balance Lightweight and durable vacuum-formed ABS construction Flood chamber for fast self-righting Powerful Velineon 540XL Marine 1
- Includes: (1) Spartan SR 6S High Performance Brushless RTR Race Boat (1) Velineon 540XL Marine 1850kV Sensorless Brushless Motor (1) VXL-6s Marine ESC (1) 2-Channel TQi 2.4GHz Transmitter (1) 5-Channel 6533 2.4GHz TSM Receiver (1) High-torque Waterproof 2056 Servo (1) Boat Stand Miscellaneous Maintenance Tools Product Manual
- Specs: Hull Type Deep-V Hull Material Vacuum-Formed ABS Hull Length 36.5in (927mm) Overall Length 40.8in (1037mm) Beam 9.5in (243mm) Height 7.2in (183mm) Propeller 2-Blade (59mm Pitch) Propeller Length 1.65in (42mm) Skill Level 2 Power Source Electric Battery Tray Dimensions (LxW) 8.58x2.76in (218x70mm) Battery Connector Traxxas iD Motor Connectors 5.5mm Bullets Assembly Level RTR*
- Part number(s) included (in factory packaging): 103076-4-RED
