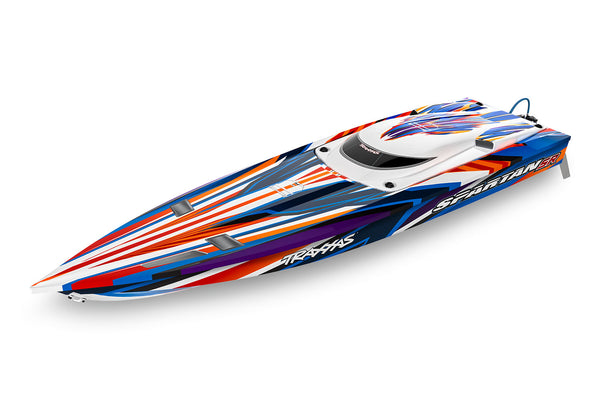

Spartan® SR is built for speed and performance. Pull the trigger and Spartan SR immediately jumps on plane and rips across the water to its heart-pounding 50+mph top speed! There’s nothing else like it and nothing holding you back. If a wave pitches the wrong direction, self righting is on board and within seconds, Spartan SR is back to extreme, full-throttle fun.
-
36″ Reinforced Deep-V Hull
- Made from lightweight vacuum-formed ABS
- Self-righting flood chamber
- Pre-applied graphics
- Quick-release electronics tray
-
Rigid Injection-Molded Clipless Hatch
- Four quick-release hatch nuts with tool
- Foam seal keeps water out
- Includes optional tool-free wingnuts
- Up to 50 MPH with Dual 3s LiPo Batteries
-
VXL-6s™ Marine Electronic Speed Control
- Water-cooled case
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 14 cells (16.8 volts)
- LiPo battery packs: 4-6 cells (14.8 to 22.2 volts)
-
Velineon® 540XL Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Efficient, high-speed ball bearings
- 1800 kV
- 5 mm output shaft
- Water-cooled jacket
-
Traxxas Stability Management® (TSM)
- Improves straight line acceleration
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter
-
TQi™ 2.4 GHz Radio System
- 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Programmable multi-function knob
- Patented waterproof receiver box
-
Extra-Long 218 mm Battery Tray
- Centralizes battery weight
- Allows fore and aft battery positioning
- Accommodates multiple battery configurations
- Secure hook and loop straps
-
Driveline
- Heavy duty 4.7 mm diameter flex shaft
- Quick-release motor collet
- Blue-anodized aluminum drive strut
- Low-maintenance bushings
- High performance prop
-
Steering
- Waterproof digital 2056 servo
- Blue-anodized aluminum rudder with water pickup
- Precision-Cut Stainless Steel Trim Tabs and Turn Fins
- Stainless Steel Hex Hardware Used Throughout
Model Specs
| Model Name: |
Spartan SR Race Boat |
| Model Type: |
Boats |
| Model Speed: |
50+ mph with two 3-cell LiPo batteries |
| Model Skill Level: |
2 |
| Scale: |
1/10 |
| Weight: |
5.29 pounds (2.39 kg) |
| Length: |
40.8 inches (1037 mm) |
| Width: |
9.5 inches (243 mm) |
| Height: |
7.2 inches (183 mm) |
| Drive System: |
Direct drive, 4.7 mm flex cable |
| Outdrive: |
Adjustable aluminum |
| Hull Length: |
36.5 inches (927 mm) |
| Dead Rise Angle: |
26 degrees |
| Overall Length: |
40.8 inches (1037 mm) |
| Overall Height: |
7.2 inches (183 mm) |
| Beam (Width): |
9.5 inches (243 mm) |
| Hull Type: |
Composite Deep-V |
| Servo(s): |
2056 high-torque waterproof |
| Radio System: |
TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver |
Motor Specs
| Motor Name: |
Velineon® 540XL Marine |
| Motor Type: |
Sensorless brushless |
| Motor Weight: |
13.62 ounces (386 g) |
| Motor Length: |
4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length |
| Motor Diameter: |
1.42 inches (36 mm) |
| Motor Shaft Size: |
5 mm |
| Motor Connector Type: |
Traxxas 5.5 mm bullet connectors |
ESC Specs
| ESC Name: |
Velineon® VXL-6s Marine |
| ESC Type: |
Brushless |
| ESC Case Size: |
2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight: |
7.30 ounces (207 g) |
| Motor Connectors: |
Traxxas 5.5 mm bullet connectors |
| Battery Connectors: |
Traxxas High Current Connector |
