VXL-8s™ Waterproof Electronic Speed Control

New aggressive tune for more power at any RPM

8s LiPo compatible

Integrated cooling fan

Real-time telemetry via Traxxas Link

3-LED status indicators

Machined heat sink

Powered accessory ports

10-gauge silicone wire

Integrated protection circuits

Velineon®1200XL Brushless Motor

4-pole 1275 kV

5 mm output shaft

Oversize aluminum heatsink for improved cooling

Dual cooling fans

Up to 60+ mph with Two 4s LiPo Batteries (sold separately)

Traxxas Stability Management®

Improves straight line acceleration and braking on low-traction surfaces

Never dulls throttle or slows the truck

Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4 GHz High Output Radio System

TQi 2-channel transmitter

Traxxas Link enabled

2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports

Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required

Programmable Multi-Function knob

Adjustable steering and throttle percentage (dual rates)

Adjustable steering and throttle sensitivity (exponential)

X-Truck™ Drivetrain

Full-time shaft-driven 4-wheel drive

Heavy-duty steel CV driveshafts & axles

Splined aluminum center driveshaft

Machined aluminum stub axles

Transmission

Mod-1 pinion and spur gears

Fixed gear mesh system

Torque-Biasing Center Drive

X-Truck Differentials

Heavy-duty sealed 4-gear design

Large scale steel ring and pinion gears

Splined outdrives attached with external thru-bolt method

New bulkhead and covers increase bearing support

Rock-Solid Motor Mounting System

Precise preset gear mesh adjustments

4 keyed pins lock the motor in place

Motor retention separate from gear mesh

GTX™ Shocks

Machined aluminum threaded body

Extra-large bore and capacity

5.2 mm damper shaft

Lower seal cartridge includes integrated wiper seal combination

Height-adjustable spring retainer

Heavy-duty composite shock caps with pivot balls

Lower spring perches bolted on

WideMaxx® Suspension

Performance-optimized geometry

Extra-wide suspension arms

Made from our strongest cold-weather material

Double-shear connections

High-strength steel suspension pins with retainers

4 mm machined pivot balls

Fixed high-strength camber and toe links

Heavy-duty steering blocks and axle carriers

Oversized wheel bearings

Steering

Powerful 365 oz-in steering servo

Heavy-duty cam-style servo saver

Dirt evacuation channels

Fully waterproof

Ultra-Low-CG Chassis Design

Modular chassis with interlocking bulkheads

Low center of gravity for improved handling

Flat bottom design

Heavy-duty interlocking skid plates

High-strength buttressing on shock towers

Dual snap-lock battery compartments

Protects batteries from side impacts

Allows secondary battery-clip security

Interlocking components for tight tolerances

Wire management for clean appearance

Patent-Pending Clipless Body

Snaps in place in just seconds

Secure body latches are easy to use

Clipless body mounting system

Rigid internal frame

Dual high-capacity cooling ducts

Molded body reinforcements for tear-through protection

Protective top skids

Rugged high-downforce rear wing

Heavy-duty Bumpers

Reinforced front bumper and rear wing support

Absorb impact forces while retaining shape

Heavy-duty front bumper and support

Reinforced rear wing support

Nerf bars for side impact resistance

Heavy-duty wheelie bar with carry handle

Wheels and Tires

7.4” Gravix™ race tires

Low sidewall for sharp turn-in response

Thick center carcass resists ballooning at high speed

Lower rotational mass for faster acceleration

3.8” matte black XRT wheels

High-strength glue and bead design

Huge 24 mm splined wheel hubs

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Model Specs

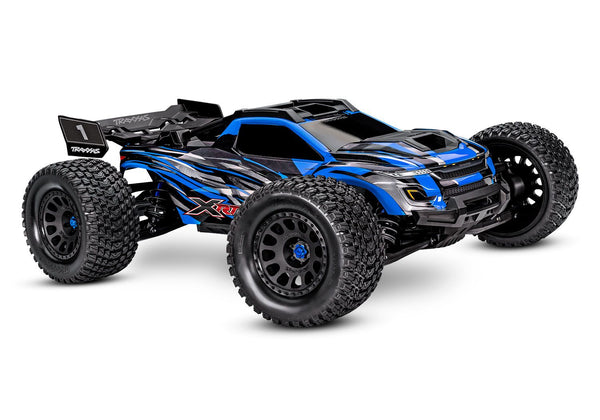

Model Name: XRT

Model Type: Monster Truck

Model Speed: 60+ mph with dual 4s LiPo batteries and optional gearing

Model Skill Level: 5

Scale: X-Truck

Weight: 21.03 pounds (9.54 kg)

Length: 31.41 inches (798 mm)

Width: 23.43 inches (595 mm)

Front Track: 23.43 inches (595 mm)

Rear Track: 23.43 inches (595 mm)

Height: 10.15 inches (258 mm)

Center Ground Clearance: 1.93 inches (49 mm)

Drivetrain: Shaft-driven 4WD

Transmission: Single speed

Differential Type: Sealed, hardened steel bevel, limited slip

Gear Pitch: 1.0 metric pitch

Servo(s): 2085 digital high-torque waterproof

Radio System: TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

Motor Specs

Motor Name: Velineon 1200XL

Motor Type: 1275 kV sensorless brushless

Motor Weight: 23.44 ounces (665 g)

Motor Length: 4.32 inches (110 mm)

Motor Diameter: 1.88 inches (48 mm)

Motor Shaft Size: 5 mm

Motor Connector Type: 6.5 mm bullet connectors

ESC Specs

ESC Name: Velineon VXL-8s

ESC Type: Brushless

ESC Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)

ESC Weight: 7.60 ounces (215.5 g)

Motor Connectors: 6.5 mm bullet connectors

Battery Connectors: Traxxas High-Current Connectors

ESC Power Wire: 10 gauge Maxx® Cable
