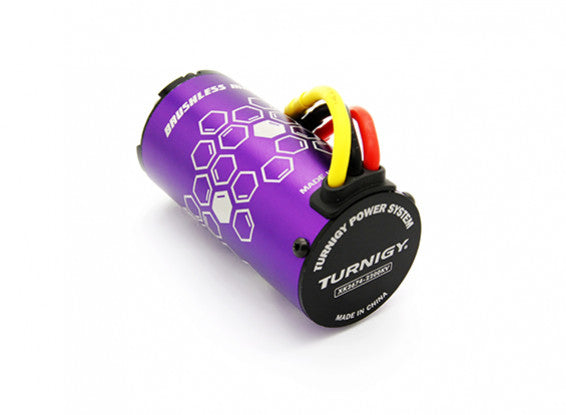

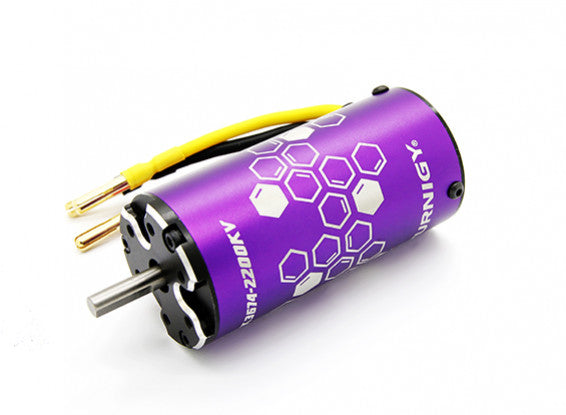

Turnigy XK3674-2200KV 1750w Brushless Inrunner

TURNIGY XK motors are without question one of the best motors on the market today. It all starts in our very own factory where we install precision bearings, correctly rated magnets, balanced rotors, tool-steel shafts and stators that are wound by hand. We rigorously test each and every component at 14 critical points during construction, testing everything from materials all the way through to final performance tests.

Because we design and build these motors completely in-house we control the production and ensure product consistency from design right through to shipping. We removed the middle-man to bring you factory prices while not sacrificing quality or performance.

Features:
• Hand-wound for maximum copper fill.
• Precision-balanced rotor will boost the efficiency and power performance of the motor.
• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.

Spec.:
Size: XK3674-2200KV
Poles: 4
KV: 2200
Max Current: 70A
Max Voltage: 25.2V/6S Lipo
Max Watts: 1750w
Case Length: 74mm
Case Dia: 36mm
Shaft Dia: 5.0mm
Total Length: 91.2mm
Weight: 310g

• Kv(rpm/v)2200.00
• Max Current (Motor) (A)70.00
• Resistance (mh)0.00
• Max Voltage (V)25.00
• Power (W)1750.00
• Shaft A(mm)5.00
• Length B (mm)74.00
• Can Diameter C(mm)36.00
• Can Length D(mm)72.00
• Total Length E(mm)91.00
