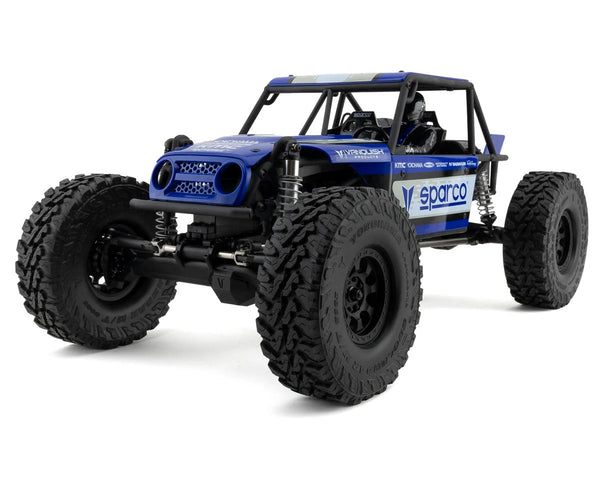

Vanquish Products H10 Optic 1/10 4WD RTR Rock Crawler (Sparco)
Vanquish Products H10 Optic 1/10 4WD RTR Rock Crawler (Sparco)
Sold out
Vanquish Products H10 Optic 1/10 4WD RTR Rock Crawler (Sparco)
Vanquish Products H10 Optic 1/10 4WD RTR Rock Crawler (Sparco)

SKU: VPS09010B

Vanquish Products H10 Optic 1/10 4WD RTR Rock Crawler (Sparco)

$499.99
Free Shipping On Orders Over $199.99 (Some Restrictions Apply)

Free Shipping On Orders Over $199.99 (Some Restrictions Apply)

Questions? Call 815-798-7260

Or send us an Email.

Mon-Fri: 8am - 3pm
Sat: 9am - 2pm
Sun: Closed

Info
OpenClose

Vanquish H10 Optic Banner Photo

Set Your Sights on This Extreme RC Rock Crawler

Vanquish H10 Optic RTR Trail Buggy

Vanquish RC is back at it with the H10 Optic 4-wheel-drive ready-to-run rock crawler. This ultimate trail truck gives you the perfect balance of style and performance. From the fully built caged chassis to the tucked away steering servo, the H10 Optic elevates the capabilities of what scale crawlers can do.

About the H10 Optic


Vanquish H10 Optic Body Photo

Full Cage Body

The Optic body design is made from durable injection molded ABS commonly referred to as a “Hard Body” giving the H10 Optic a true scale driving experience of a rugged and solid Trail Buggy with rigid body panels. This body comes pre-painted and stickered to represent the Sparco styling.

Vanquish H10 Optic Battery Compartment Photo

Hidden Battery Compartment

Where does the battery go? It is cleanly tucked away inside the driver-side body panel. Using a genius pin design, the battery tray is sized to accommodate a shorty style Lipo Battery (battery sold separately). This panel is also removable on the passenger side making it convenient storage for scale accessories.

Vanquish H10 Optic Front Axle Photo

Scale Ram Style Steering

It wouldn't be a Vanquish truck without crazy attention to detail. The front axle features a Hydro style ram steering system that provides a direct and protected link between the front tires and hides the servo low behind the rear axle to enhance the scale appearance. The servo drives the passenger side tire and that transfers the movement to the front facing ram giving insane scale looks.

Vanquish H10 Optic Front Chassis Photo

Front Axle

This truck is outfitted with the latest innovation from Vanquish and uses their H10 Axles. This front axle uses an offset pumpkin design and carries the scale steering components mentioned above. The front locked differential uses a spiral cut ring and pinion gear design for efficient power transfer. The driveshafts use metal universal joints to transmit power to the front tires. Held up by S8E shocks and held in place by stainless steel links, this axle sets standards for what is possible with scale performance.

Vanquish H10 Optic Rear Chassis Photo

Rear Axle

The rear H10 axle uses a centered pumpkin design and gives a scale realistic look with bracing molded into the rear of the axle housing. Housed inside are also spiral cut ring and pinion gears, just like the front axle, to promote efficiency. Stainless steel links are also used with S8E shocks for smooth suspension movements.

Vanquish H10 Optic Electronics Photo

Transmission & Electronics

Continuing performance, Vanquish outfitted this truck with the VRD transmission. This transmission sits low within the chassis to ensure a low center of gravity (CG). This helps keep the H10 balanced while offering a predictable driving style. Powered by a VM-1 35T Brushed Motor, featuring a closed end bell design, ensures trail torque and speed for conquering rough terrains. The 3S LiPo capable VE-1 ESC uses a built in BEC to power the steering servo, plus any optional extras you add. Controlling everything is the VT-1 to give you a wide range of adjustments plus two extra channels for down the road upgrades.

Features:

  • Molded cage chassis
  • Scale body panels with hidden battery tray
  • Includes Vanquish's ready-to-run electronics for out of the box performance
  • H10 Axle with hidden servo and scale steering ram
  • Equipped with Incision S8E shocks
  • Stainless steel front and rear 4-link design
  • Hidden electronics
  • Pre-mounted Yokohama tires on KMC wheels
  • Sparco Licensed ABS hardbody interior
  • Scale Powertank and fuel cell in the bed of the cage

Includes:

  • (1) Vanquish H10 Optic RTR Rock Crawler
  • (1) VT-1 2.4GHz Transmitter
  • (1) VM-1 35T Brushed Motor
  • (1) VE-1 Brushed ESC
  • (1) VS-1 Metal Gear Servo
  • (4) AA Batteries for Transmitter

Needed To Complete:

  • (1) 2-3s LiPo Shorty Pack with XT60 Connector
  • Compatible LiPo Balance Charger

Specifications:

Scale 1:10
Drive 4WD
Power Source 2S-3S LiPo
Length 18.00in (457.2mm)
Wheelbase 13.25in (336.55mm)
Width 9.75in (247.65mm)
Height 7.75in (196.85mm)
Weight 86.24oz (2444.86g)
Assembly Level RTR

*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
